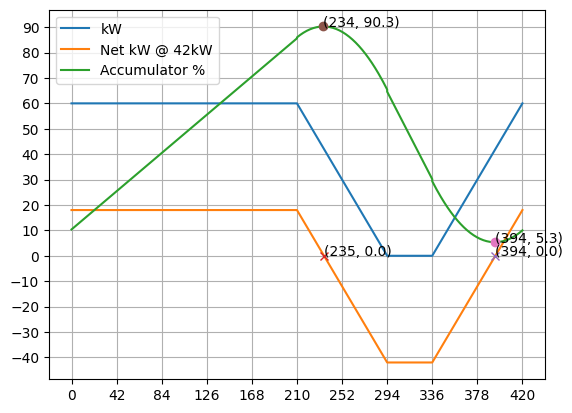

Alternate Graph showing solar power data

import matplotlib.pyplot as plt
import numpy as np

x_day = np.linspace(0, 210, 210)
y_day = np.full_like(x_day, 60)

x_dusk = np.linspace(210, 294,84)
y_dusk = np.linspace(60, 0, 84)

x_night = np.linspace(294, 336, 42)
y_night = np.zeros_like(x_night)

x_dawn = np.linspace(336, 420, 84)
y_dawn = np.linspace(0, 60, 84)

x = np.concatenate([x_day, x_dusk, x_night, x_dawn])
y = np.concatenate([y_day, y_dusk, y_night, y_dawn])

accumulator = np.cumsum(y - 42) + 500
accumulator = np.clip(accumulator, 0, 5000)
accumulator = (accumulator / 5000) * 100

plt.plot(x, y, label="kW")
plt.plot (x, y - 42, label="Net kW @ 42kW")
plt.plot(x, accumulator, label="Accumulator %")
plt.legend()

plt.xticks(range(0, 425, 42))
plt.yticks(range(-50, 105, 10))
plt.grid()

negative_space = np.where(y-42 < 0)[0]
plt.plot(negative_space[0], 0, 'x')
plt.plot(negative_space[-1], 0, 'x')
plt.text(negative_space[0], 0, f"({negative_space[0]:.0f}, {0:.1f})")
plt.text(negative_space[-1], 0, f"({negative_space[-1]:.0f}, {0:.1f})")

plt.plot(np.argmax(accumulator), np.max(accumulator), 'o')
plt.text(np.argmax(accumulator), np.max(accumulator), f"({np.argmax(accumulator):.0f}, {np.max(accumulator):.1f})")
plt.plot(np.argmin(accumulator), np.min(accumulator), 'o')
plt.text(np.argmin(accumulator), np.min(accumulator), f"({np.argmin(accumulator):.0f}, {np.min(accumulator):.1f})")

print("Accumulators per Solar Panel: ", np.max((accumulator) - np.min(accumulator)) / 100)
#Check work
positive_trapezoid = ((420 - (negative_space[-1] - negative_space[0]) - 2) + 210) * 9 #Subtract 2 to avoid double ownership of indice.
negative_trapezoid = ((negative_space[-1] - negative_space[0]) + 42) * 21
print("Passed error check: ", negative_trapezoid == positive_trapezoid)

plt.show()
